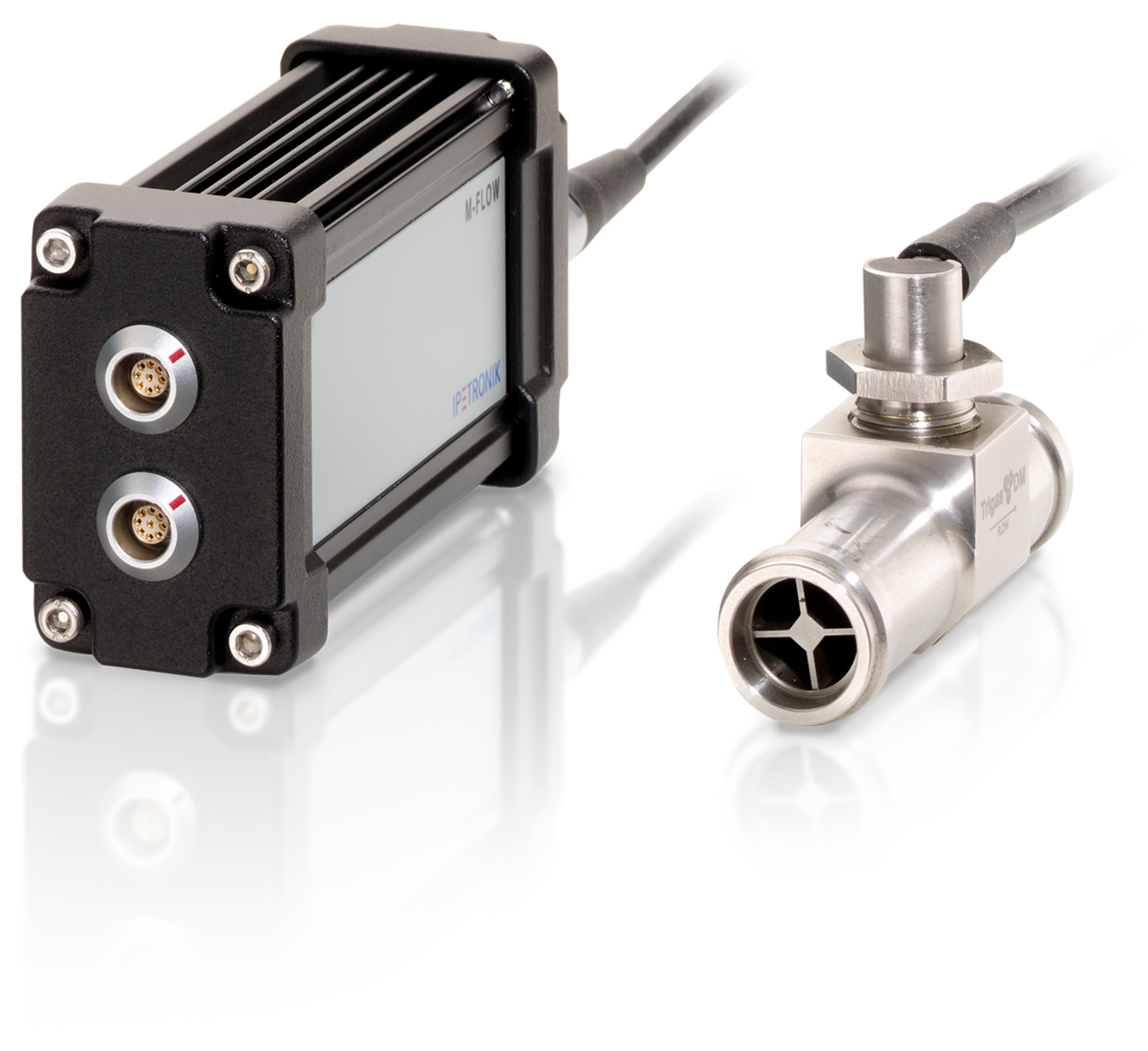

M-FLOW

High Precision Flow Meter for Optimization and Quality Assurance of Circuits within the whole Vehicle

M-FLOW

High Precision Flow Meter for Optimization and Quality Assurance of Circuits within the whole Vehicle
  • Highly Compact and rugged solution with 360° pickoff
  • Broad range of applications: water, oils, fuels, AdBlue and many other liquid media
  • Precise results at every temperature thanks to linearization
  • "Plug & Play" with simple configuration in IPEmotion
  • Process reliability thanks to the direct digitalization of the values and a decrease in components
  • Direct integration into the CAN bus without additional cabling or power supply
  • Flow measurement in the desired unit, e.g. m3/hour, liters/minute, ml/minute
  • Maximum linearity and 15 % less pressure loss with the new turbine design

Enquire now Datasheet Add to notelist

Technical Data

Channel sampling rates Flow rate 1000 Hz; Temperature 1000 Hz
Inputs 1
Working temperature range -40 … 125 °C (-40 … 257 °F)
IP-Code IP 68

M-FLOW – Technical data

Download as PDF

Input HV
* Safety instructions
General channel properties
Channel sampling rates Flow rate 1000 Hz; Temperature 1000 Hz
Channel CNT
Number of inputs
Excitation
Sensorspeisung
Galvanic isolation
Input ↔ module power supply ±100 V (indefinitely), ±500 V (pulse voltage)
Input ↔ CAN ±100 V (indefinitely), ±500 V (pulse voltage)
Input ↔ enclosure ±100 V (indefinitely), ±500 V (pulse voltage)
Input ↔ input ±100 V (indefinitely), ±500 V (pulse voltage)
Device
Inputs 1
Precisions
Voltage supply 6 … 36 VDC
Power consumption, typical < 0.5 W
Working temperature range -40 … 125 °C (-40 … 257 °F)
Storage temperature range -55 … 150 °C (-67 … 302 °F)
IP-Code IP 68
Relative humidity 0 … 85 %
Dimensions L122 mm x W55 mm x D34 mm (4.8 in x 2.17 in x 1.34 in)
Weight 145 g (0.32 lb)
Configuration interface CAN high speed
Data transfer rate Software selectable up to 1 MBit/s (ISO11898-2)
Test standards IEC 61010-2-201
Housing material Aluminium, black powder coated
Input sockets ODU G81B0C-P05QJ00, ODU G81F1C-P05QJ00
Output sockets LEMO 0B,9-pol./P,30°
Schutz gegen aggressive Flüssigkeiten
Electrical data
Status LED
Accessories
System cable 620-561 M-PWR term cable, banana, 620-567 M-CAN/PWR term cable SubD/S, banana, 620-502 M-CAN cable SUBD/S Term.
