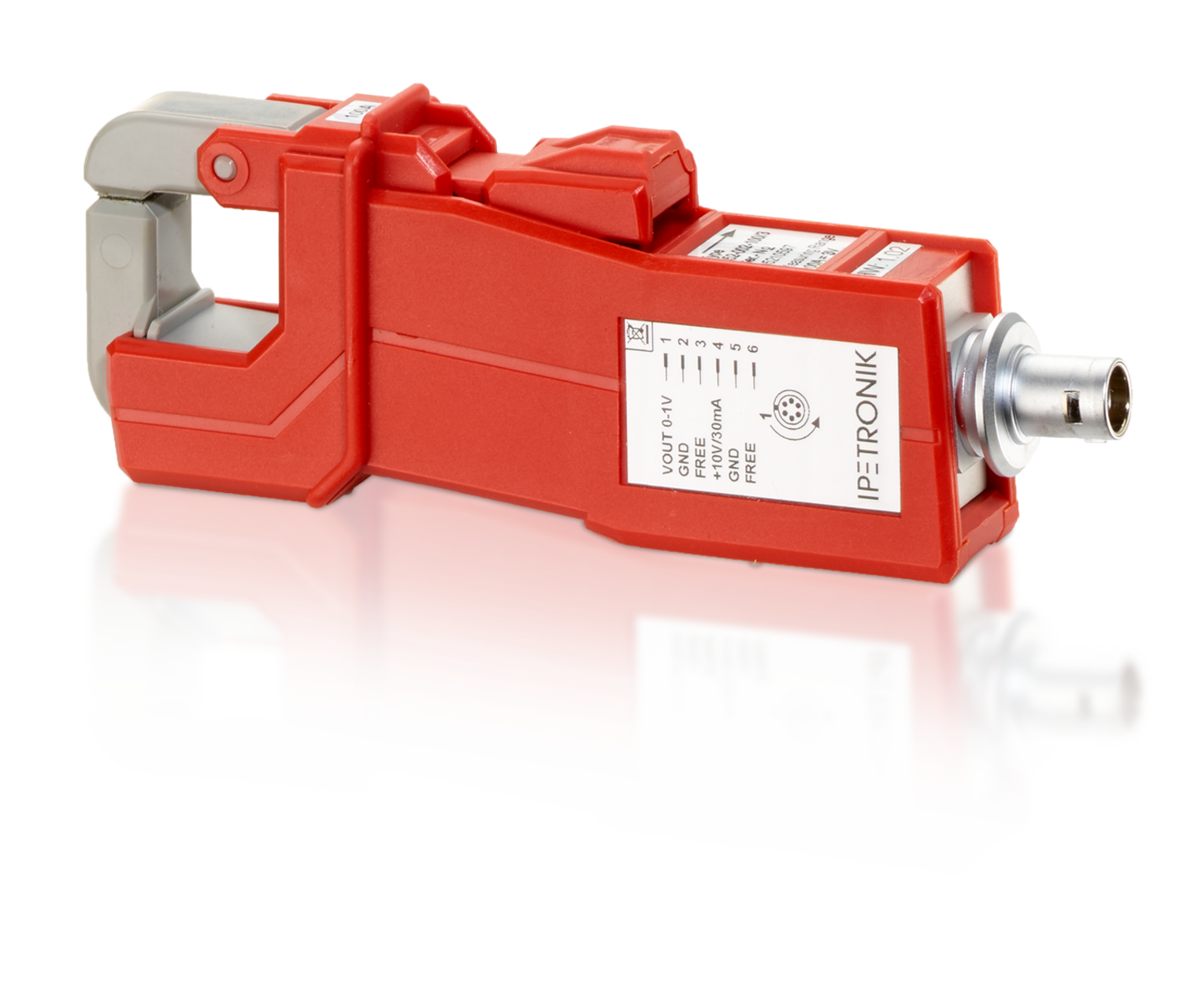

Current clamp

Current clamp for measurement of AC and DC current

Current clamp

Current clamp for measurement of AC and DC current
  • Current measurement up to 300 A
  • Mobile current measurement according to IEC 1010-1 standard
  • Status LED for supply voltage indication
  • Shock-proof plastic housing material
  • Direct connection to SENS modules

Enquire now Datasheet Add to notelist

Technical Data

Inputs 1
Voltage supply 10 … 18 VDC
Working temperature range -10 … 50 °C (-14 … 122 °F)
IP-Code IP 40 (ISO 20653 - 2013)

Current clamp – Technical data

Download as PDF

Input HV
* Safety instructions
Channel current
Accuracy 2 % (10 ... 120 A Range)
Channel CNT
Number of inputs
Excitation
Sensorspeisung
Device
Inputs 1
Precisions
Voltage supply 10 … 18 VDC
Power consumption, typical 6 W
Working temperature range -10 … 50 °C (-14 … 122 °F)
Storage temperature range -20 … 60 °C (-4 … 140 °F)
IP-Code IP 40 (ISO 20653 - 2013)
Relative humidity 5 … 80 %
Dimensions W116 mm x H43 mm x D23 mm (4.57 in x 1.69 in x 0.91 in)
Weight 165 g (0.36 lb)
Housing material Red reinforced thermoplastic material
Test cable diameter, max. 15 mm x 17 mm (0.59 in x 0.67 in)
Schutz gegen aggressive Flüssigkeiten
Electrical data
Current ranges RMS (type 1) 1 … 100 A
Output ratio (I : U) 100 : 3, 300 : 1
Voltage output range 0 … 3 V, 0 … 3 V
Current ranges RMS (type 2) 1 … 300 A
Accuracy 2 % (30 … 360 A range)
Accuracy @ 400 Hz 3 %
Zero balance Potentiometer
Frequency range DC … 1000 Hz
Status LED Power indication
Minimum external load 30 kΩ
Protection class III according to IEC 1010-1
Isolation voltage 3 kV @ 50 Hz, 1 min. duration
Accessories
System cable 600-065 adapter SENS FIPS 5p Cable LEMO 1B6p/S, 600-898 SENS LEMO 1b6p cable extension
