IPEcan FD Pro

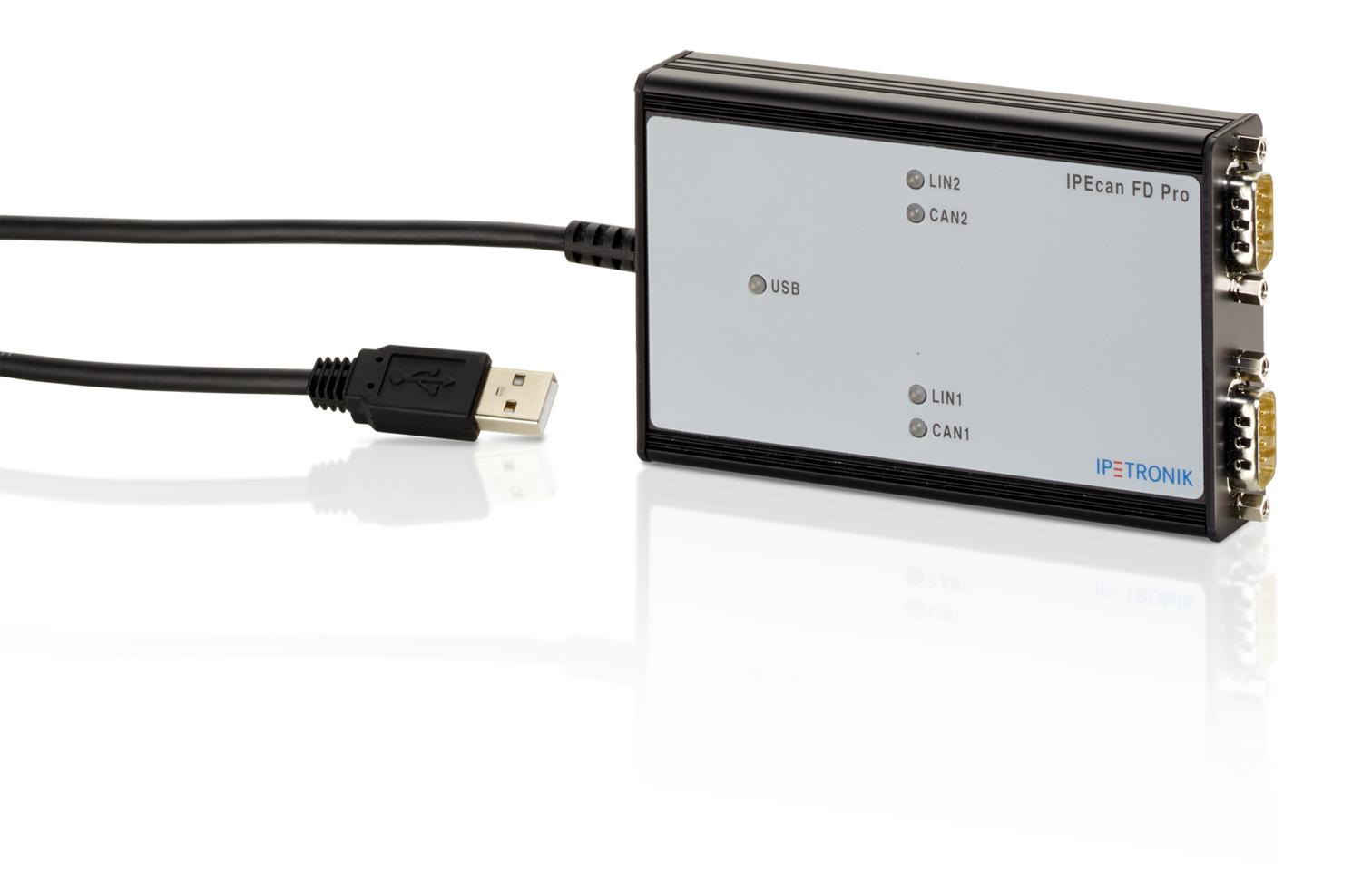

2-channel USB2CAN FD / LIN interface

IPEcan FD Pro

2-channel USB2CAN FD / LIN interface
  • PC-USB bus adapter for CAN / CAN FD / LIN networks
  • CAN-FD SIC
  • High speed CAN bus input per ISO 11898
  • SUB-D 9-pole connector according CiA® Standard 102
  • Data output to PC/notebook via USB 2.0
  • 5 operation status LEDs for USB, CAN, LIN
  • Software integration for IPEmotion

Enquire now Datasheet Add to notelist

Technical Data

Inputs 2+2
Working temperature range -40 … 85 °C (-40 … 185 °F)
IP-Code IP 50 (ISO 20653 - 2013)

IPEcan FD Pro – Technical data

Download as PDF

Input HV
* Safety instructions
General channel properties
Channel LED Yes
Channel CNT
Number of inputs
Excitation
Sensorspeisung
Galvanic isolation
Input ↔ input 500 V
Input ↔ USB (PC) 500 V
Device
Inputs 2+2
Precisions
Voltage supply 8 … 18 VDC LIN transceiver through SUB-D connector, 5 VDC - Power supply via USB (PC)
Power consumption, typical 1.0 W (max 200mA @ 5V)
Working temperature range -40 … 85 °C (-40 … 185 °F)
Storage temperature range -55 … 100 °C (-67 … 212 °F)
IP-Code IP 50 (ISO 20653 - 2013)
Relative humidity 15 ... 95 %
Dimensions W120 mm x H24 mm x D71 mm (3.62 in x 0.94 in x 2.80 in)
Weight 230 g (0.507 lb)
Configuration interface USB 2.0 (compatible to USB 1.1 and USB 3.0)
Test standards EN 55024: 2003-10, EN 55022: 2008-05, EC Directive 2004/108/EG
Input sockets SUB-D 9-pin connector according CiA® Standard 102 PIN assignment
Status LED Yes
Schutz gegen aggressive Flüssigkeiten
Electrical data
Status LED
CAN Interface
CAN CAN high speed (ISO11898), 2.0A (standard ID), 2.0B (extended ID)
Data transfer rates CAN (high speed) 25 kBit/s ... 1 MBit/s
Data transfer rates ISO CAN FD 25 kBit/s ... 12 MBit/s, CAN-FD SIC support (starting with serial number 36402000)
LIN interface
LIN LIN specification 2.1
LIN operating modes Listen, Slave, Master
Data transfer rates LIN 1 kBit/s ... 20 kBit/s
Accessories
System cable 600-851 600-851 SIM-CAN cable SUB D Term., 620-567 M-CAN/PWR term cable SubD/S, banana, 620-502 M-CAN cable SUBD/S Term., 600-359 SIM-CAN/PWR Term. cable SUB D/S, banana
