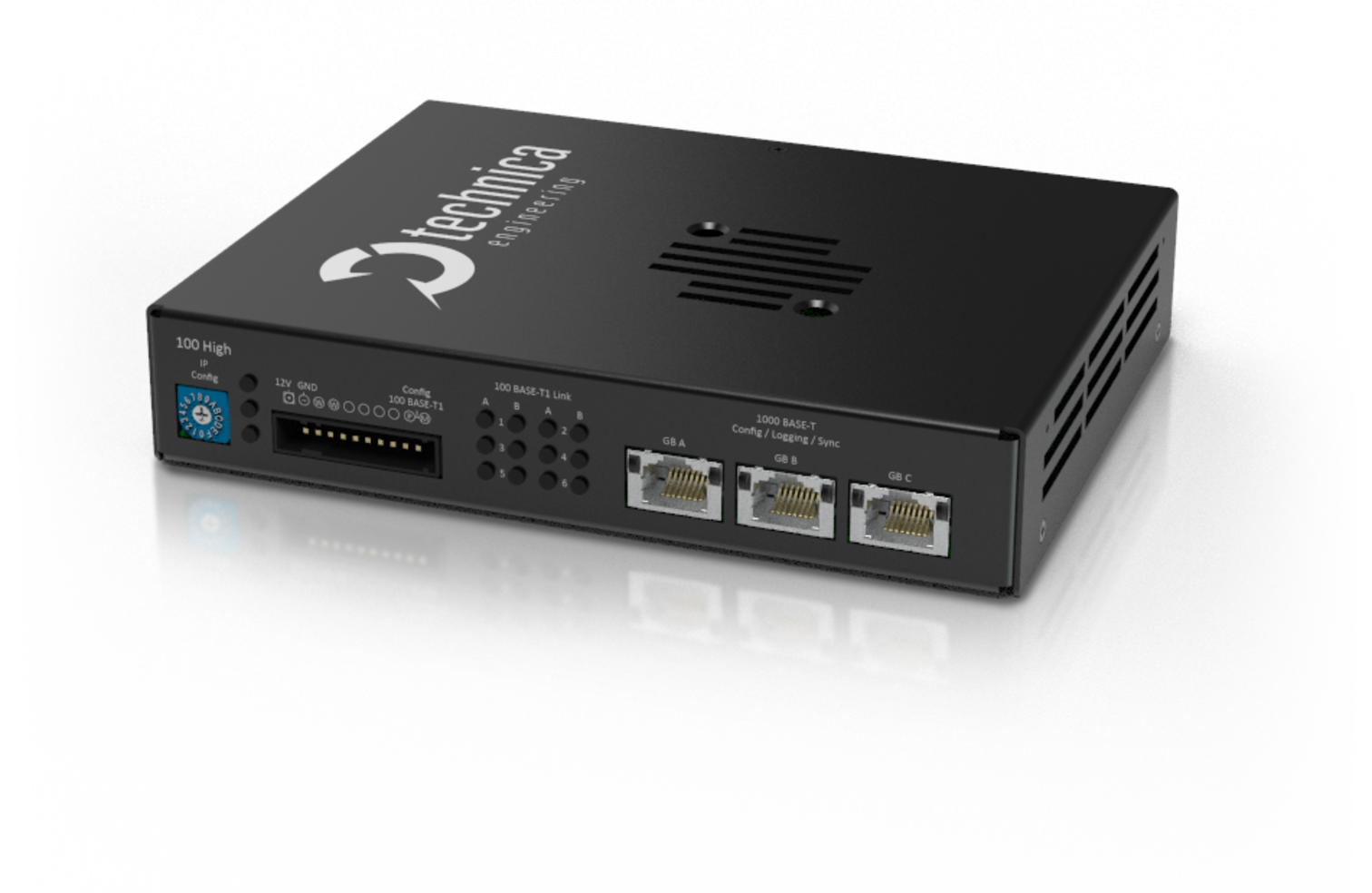

CM 100 High

Ethernet capture module

CM 100 High

Ethernet capture module
  • Analysis of automotive ethernet networks
  • 6 link lines 100BASE-T1 (12 ports)
  • Configuration via web interface
  • Network time synchronization (802.1AS)
  • Cascading of several modules
  • Developed for automotive applications
  • Data logger support for ETHOS, ETHOS 2, ARCOS 1.5, ARCOS 2, IPElog2

Enquire now Datasheet Add to notelist

Technical Data

1 Gbit 3
100BASE-T1 12
Voltage supply 8 ... 16 VDC
Power consumption, typical 5.7. …7.8 W
Working temperature range -40 … 80 °C (-40 … 176 °F)
IP-Code IP 20 (ISO 20653 - 2013)

CM 100 High – Technical data

Download as PDF

CAN Interface
Status-LED
Power consumption, WoC+NML
Power consumption, WoC
LIN interface
Status LED
Power consumption, WoL+NML
Power consumption, WoL
DIO interface
Status LED
Switching capacity digital-output
Device
Inputs
Voltage supply 8 ... 16 VDC
Power consumption, typical 5.7. …7.8 W
Power consumption, standby
Working temperature range -40 … 80 °C (-40 … 176 °F)
IP-Code IP 20 (ISO 20653 - 2013)
Relative humidity 5 ... 95 %
Dimensions W167 mm x H32mm x D143 mm (6.57 in x 1.26 in x 5.63 in)
Weight 1000 g (2.20 lb)
Configuration interface Ethernet
Configuration software Web interface
Status LED
FlexRay interface
Power consumption, WoFR+NML
Power consumption, WoFR
Status LED
Ethernet-Interfaces
1 Gbit 3
100BASE-T1 12
Resolution timestamp 40 ns
Accessories
System cable 620-688 LOG GB-ETH cable RJ45
