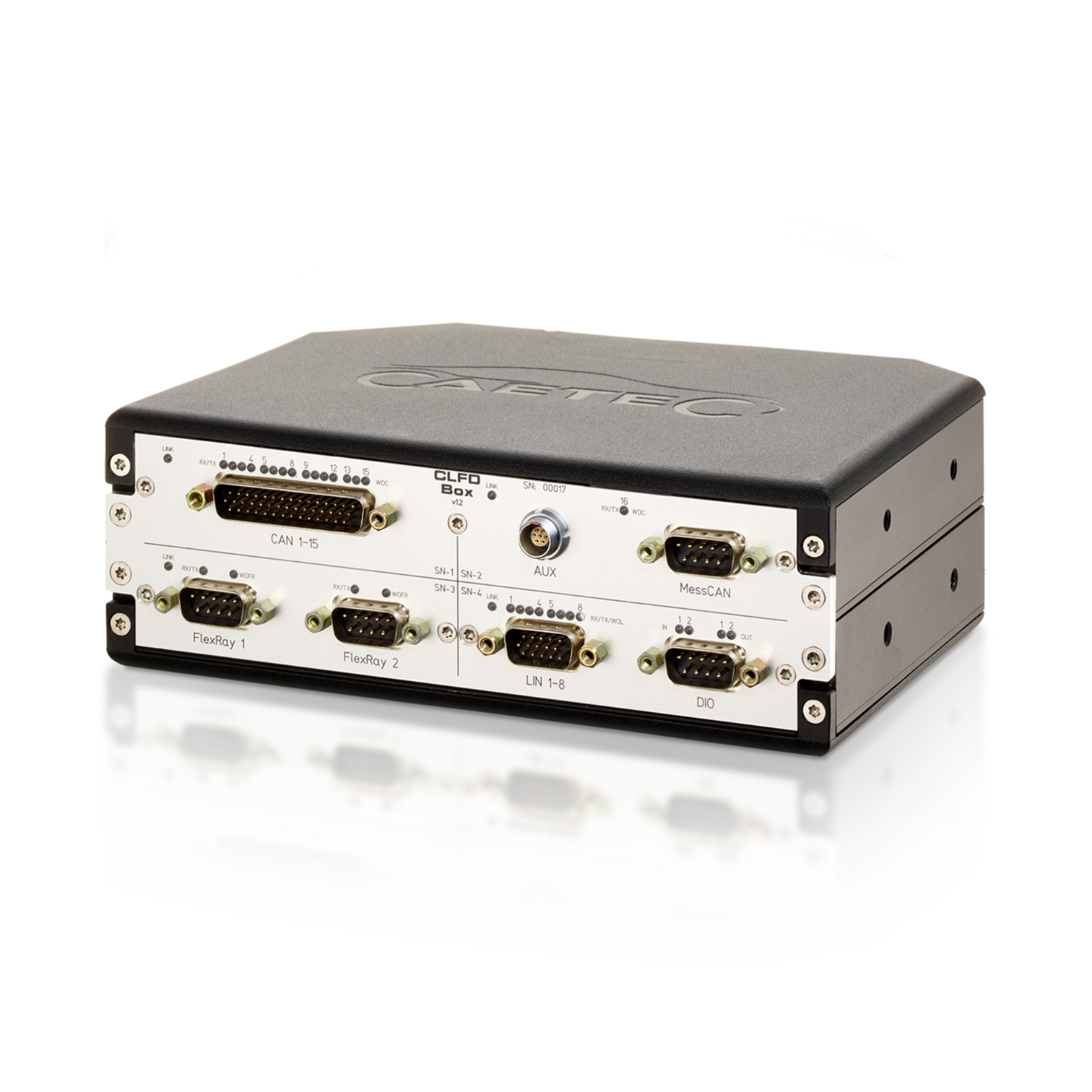

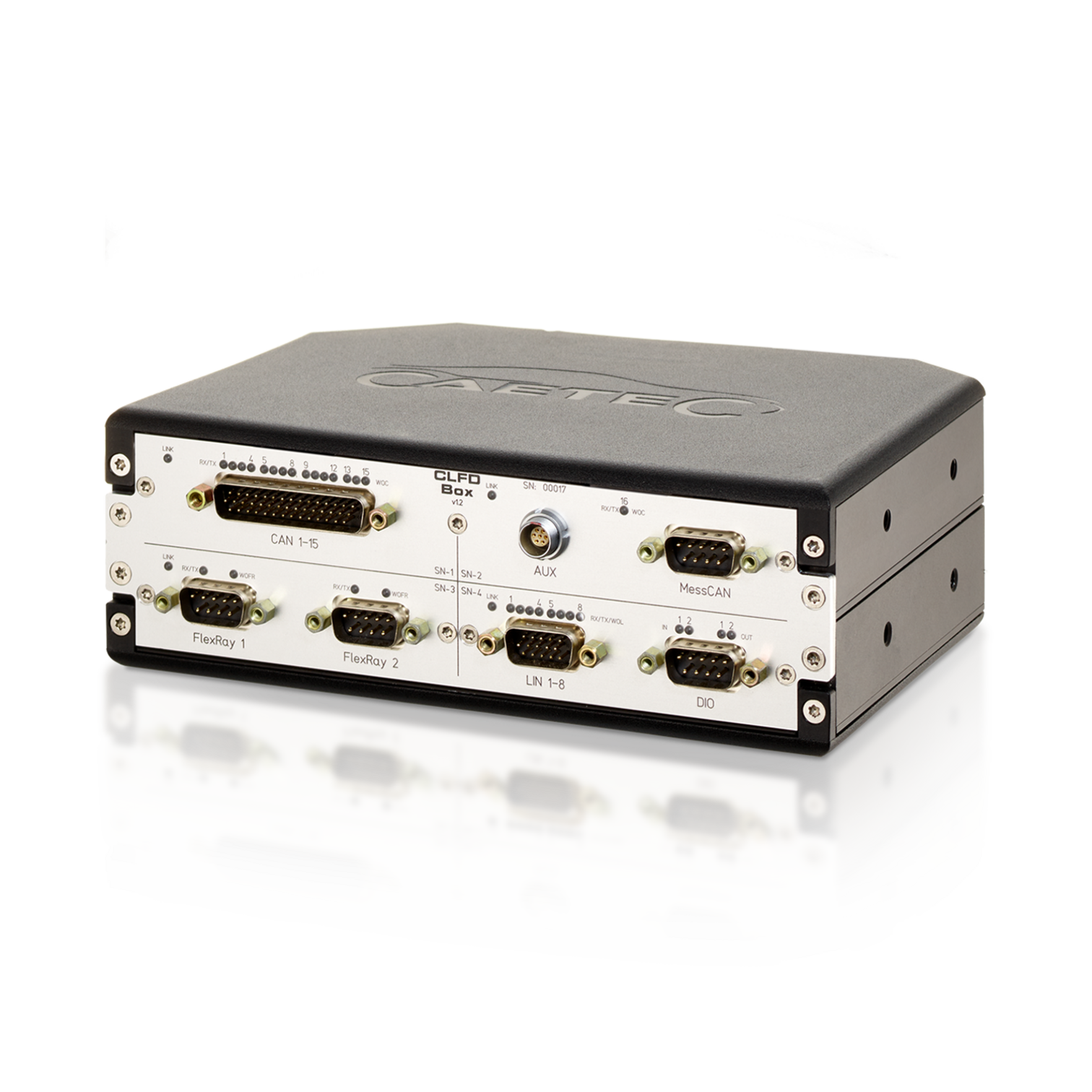

CLFD Box

CAN, LIN, FlexRay, DIO interface module for ARCOS 1.5 and ARCOS 2

CLFD Box

CAN, LIN, FlexRay, DIO interface module for ARCOS 1.5 and ARCOS 2
  • Quickstart, No Message Lost (NML), Wake on CAN/LIN/FlexRay
  • CLFD box can be cascaded
  • 16 CAN high speed inputs
  • 8 LIN inputs
  • 2 FlexRay inputs
  • 2/2 digital inputs / digital outputs

Enquire now Datasheet Add to notelist

Technical Data

CAN HS (ISO 11898-2) 16
LIN (1.3 & 2.0) 8
Digital I/O 2/2
FlexRay 2
Voltage supply 6 … 50 VDC, 8 … 27 VDC (for LIN measurement)
Power consumption, typical 9.0 W
Working temperature range -40 … 85 °C (-40 … 185 °F)

CLFD Box – Technical data

Download as PDF

CAN Interface
CAN HS (ISO 11898-2) 16
Input sockets 1 x CAN on SUB-D (9-pol), 15 x CAN on SUB-D (44-pol)
Galvanically isolated No
Wake on CAN (WoC) Yes (boot time 320 ms)
No Message Lost (NML) Yes
Status-LED 16 Rx/Tx for CAN interfaces / 1 x ETH link
Power consumption, WoC+NML 1.5 W (8 CAN inputs)
Power consumption, WoC 0.1 W
LIN interface
LIN (1.3 & 2.0) 8
LIN inputs 8
Input sockets 8 x LIN on SUB-D (15-pol)
Galvanic isolated No
Wake on LIN (WoL) Yes
No Message Lost (NML) Yes
Quickstart Yes
Status LED 8 Rx/Tx for LIN interfaces / 1 x ETH link
Power consumption, WoL+NML
Power consumption, WoL 0.1 W
DIO interface
Digital I/O 2/2
Input sockets 2 x in / 2 x out SUB-D (9-pole)
Galvanic isolated Output: yes / Input: no
Quickstart Yes
Status LED 4 In/Out
Switching capacity digital-output 600 mA
Device
Inputs
Voltage supply 6 … 50 VDC, 8 … 27 VDC (for LIN measurement)
Supply voltage thresholds Switch-on 6 ±0.3 VDC / Switch-off 6 ±0.3 VDC
Power consumption, typical 9.0 W
Power consumption, standby 0.1 W
Working temperature range -40 … 85 °C (-40 … 185 °F)
Storage temperature range -45 … 90 °C (-49 … 194 °F)
IP-Code IP 40 (ISO 20653 - 2013)
Relative humidity 5 ... 95 %
Dimensions W184 mm x H53 mm x D140 mm (7.24 in x 2.09 in x 5.51 in)
Weight 1450 g (3.86 lb)
Configuration interface Ethernet (100 Mbit)
Data transfer rate 100 Mbit
Configuration software IPEmotionRT, IPEmotion
Test standards AK-LV 01
Status LED
Input sockets 1 x CAN on SUB-D (9-pol), 15 x CAN on SUB-D (44-pol)
Analog interface
Galvanic isolated No
FlexRay interface
FlexRay 2
Input sockets 2 x FlexRay on 2 x SUB-D (9-pole)
Galvanic isolated Yes
Wake on FlexRay (WoFR) Yes
Power consumption, WoFR+NML
Power consumption, WoFR 0.6 W
Status LED Yes, 4 Rx/Tx for FlexRay interfaces / 1 x ETH link
Accessories
System cable 620-574 LOG-PR05 cable banana
Input cable 620-699 CLFD-Box V1.2 CAN1-15 cable 15xSubD9/P
