CAN FD Satellite Interface

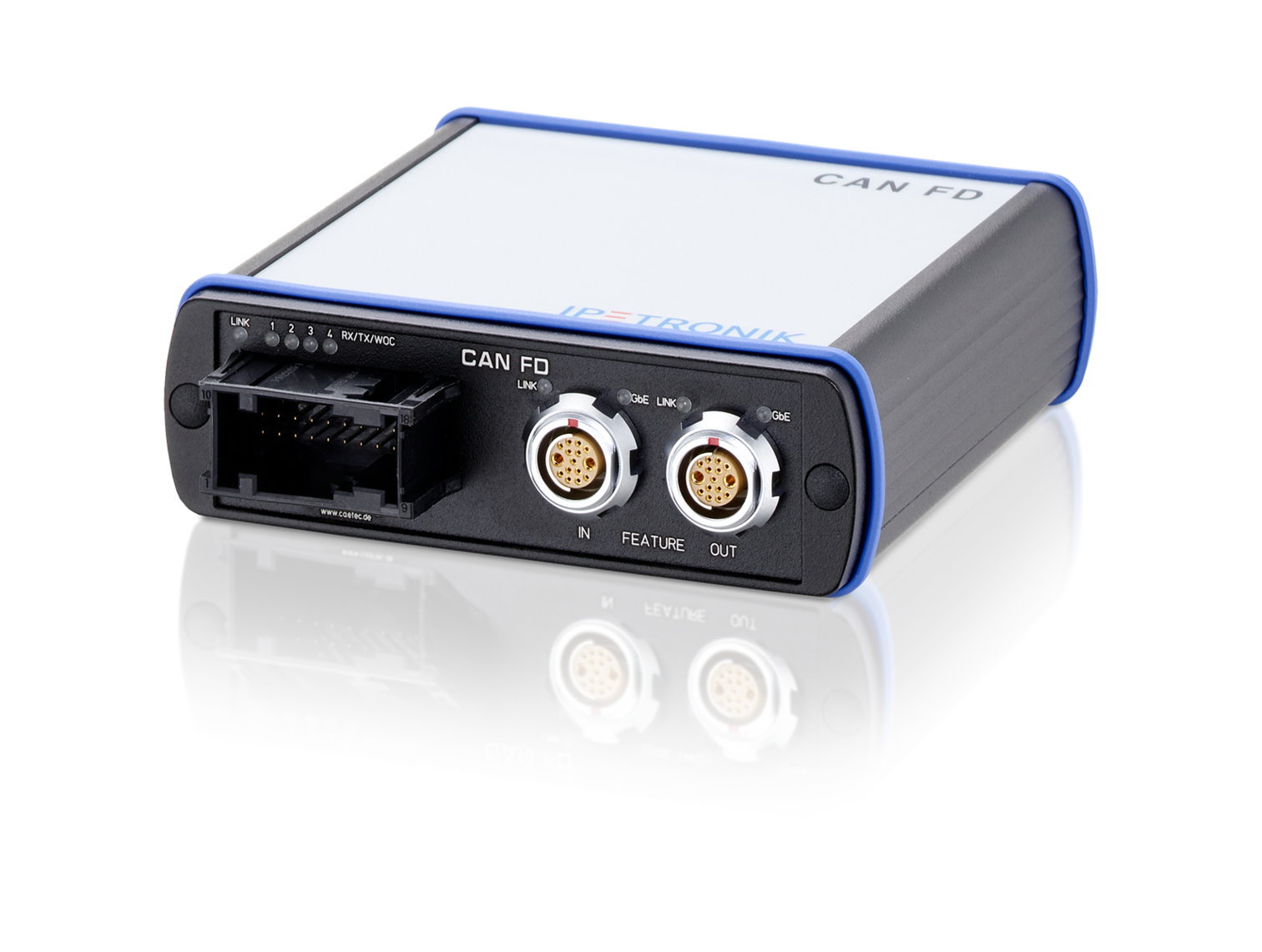

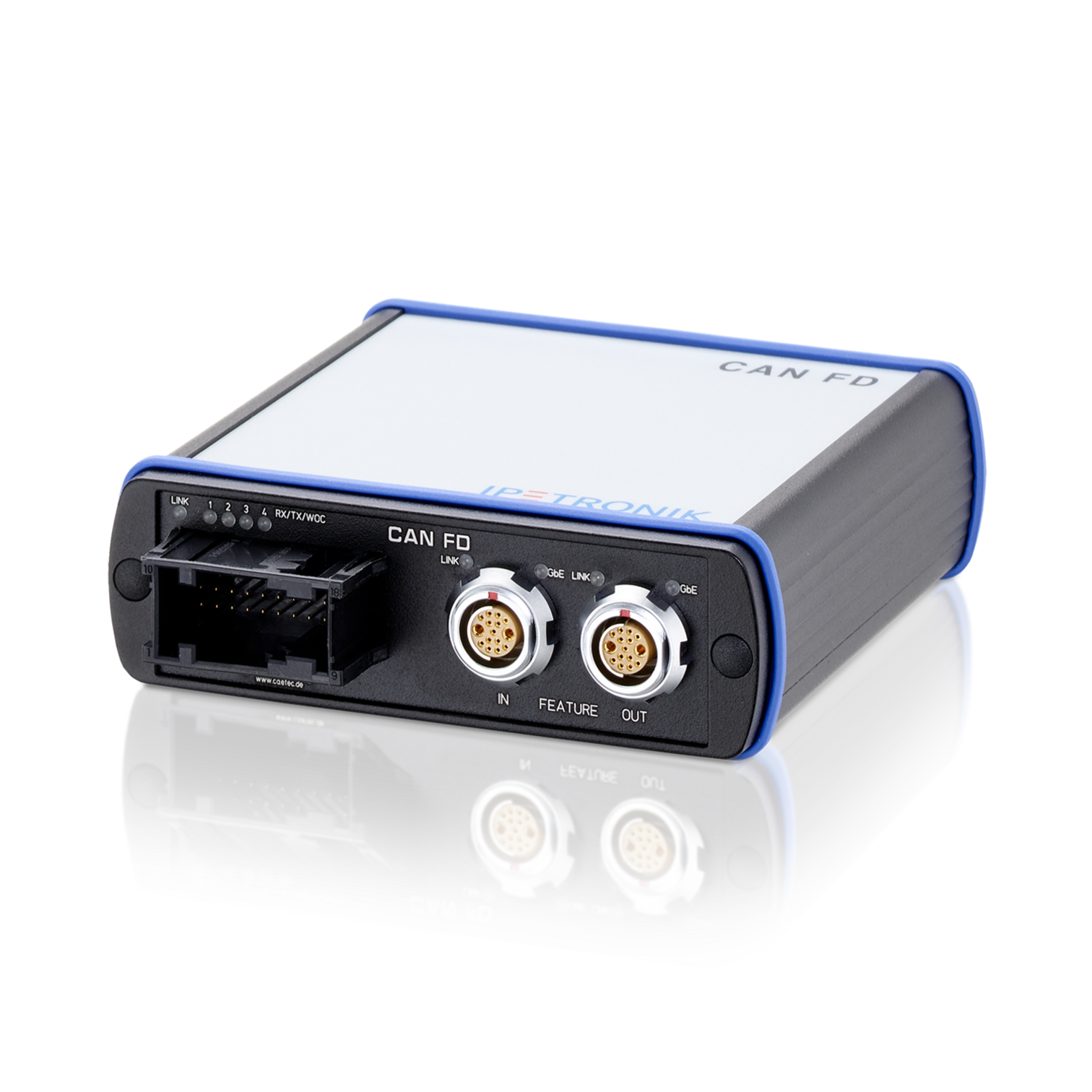

Satellite with 4 ISO CAN FD inputs

CAN FD Satellite Interface

Satellite with 4 ISO CAN FD inputs
  • Feature connector with GbE, supply and wake function
  • Daisy chaining of several satellites
  • WoC and NML support
  • Configuration with IPEmotion Software
  • 9 status LEDs
  • Extension unit for ETHOS, ETHOS 2, ARCOS 1.5, ARCOS 2, IPElog2, M-LOG V3

Enquire now Datasheet Add to notelist

Technical Data

CAN FD (ISO 11898-1) 4
Voltage supply 6 … 36 VDC
Power consumption, typical 2.0 W
Power consumption, standby 0.003 W
Working temperature range -40 … 85 °C (-40 … 185 °F)
IP-Code IP 40 (ISO 20653 - 2013)
Dimensions B109 mm x H35mm x T130 mm (4.29 in x 1.38 in x 5.12 in)
Weight 365 g (0.80 lb)

CAN FD Satellite Interface – Technical data

Download as PDF

CAN Interface
CAN FD (ISO 11898-1) 4
CAN FD Baud rate 4 Mbaud
Input sockets 1 Plug 18-pin (1379101-1)
Galvanically isolated No
No Message Lost (NML) Yes
Status-LED 4 Rx/Tx for CAN inputs and WoC, 5 ETH link
Power consumption, WoC+NML 2.0 W
Power consumption, WoC 0.06 W
LIN interface
Status LED
Power consumption, WoL+NML
DIO interface
Status LED
Switching capacity digital-output
Device
Inputs
Voltage supply 6 … 36 VDC
Supply voltage thresholds Switch-on 6 ±0.3 VDC / Switch-off 6 ±0.3 VDC
Power consumption, typical 2.0 W
Power consumption, standby 0.003 W
Working temperature range -40 … 85 °C (-40 … 185 °F)
Storage temperature range -45 … 90 °C (-49 … 194 °F)
IP-Code IP 40 (ISO 20653 - 2013)
Relative humidity 5 ... 95 %
Dimensions B109 mm x H35mm x T130 mm (4.29 in x 1.38 in x 5.12 in)
Weight 365 g (0.80 lb)
Configuration interface Ethernet (1 Gbit)
Data transfer rate 1 Gbit
Configuration software IPEmotion
Status LED
Input sockets 1 Plug 18-pin (1379101-1)
Analog interface
Galvanic isolated No
FlexRay interface
Power consumption, WoFR+NML
Power consumption, WoFR
Status LED
Accessories
System cable 620-704 LOG ETH-IN cable satellite, 666-531 FEATURE / ABK cable, 620-702 LOG GB-ETH LEMO 1B 14p cable satellite, 620-710 satellite connection cable, 620-708 ETH RJ45 cable CAN satellite,PWR-banana/P
Input cable 620-705 CAN-FD/LIN satellite cable 4x CAN/LIN-SUBD9/P
