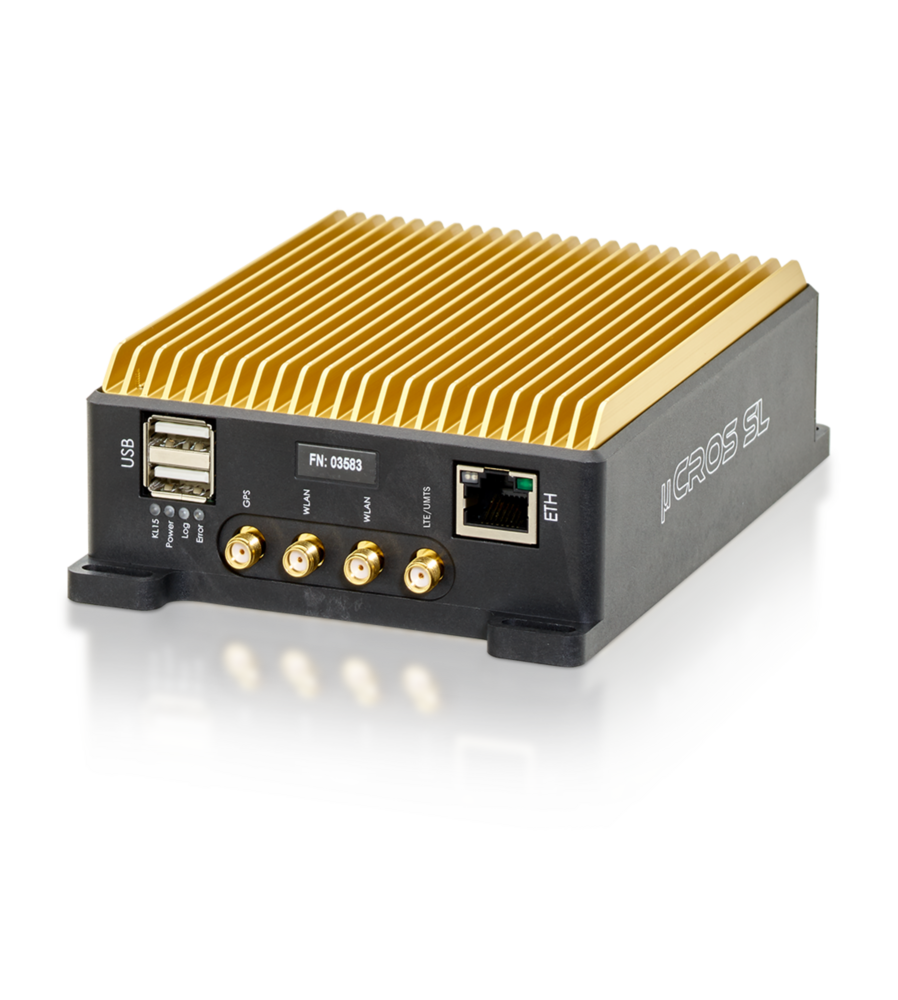

µCROS SL

Scalable data logger for fleet management and experimental validation

µCROS SL

Scalable data logger for fleet management and experimental validation
  • 4 CAN high speed interfaces
  • Quickstart, No Message Lost (NML)*, Wake on CAN (WoC)
  • Integrated 4G modem, WiFi and GPS receiver
  • 1 digital output, 2 digital inputs
  • 2 analog inputs 0 … 40 VDC @ 10 bit/50 Hz cut-off frequency
  • Plastic and aluminum housing, gold anodized
  • Configuration with IPEmotion RT.UI
  • * Available from IPEmotion 2020 R2

Enquire now Datasheet Add to notelist

Performance Index
Describes the performance of the used processor

Technical Data

Inputs 4x CAN
Performance Index 878
Data Transmission Modem, WiFi, GPS
Voltage supply 6 … 36 VDC
Working temperature range -20 … 75 °C (-4 … 167 °F)
IP-Code IP 40 (ISO 20653 - 2013)

µCROS SL – Technical data

Download as PDF

Interfaces
CAN HS (ISO 11898-2) Yes
Analog input 2 x 0 ... 40 VDC @ 10 bit/50 Hz
Digital I/O 2/1
Ethernet interface to PC Ethernet (100 Mbit)
USB 2.0 ports 2
Interface option 1 2 CAN, GPS
Interface option 2 2 CAN, GPS, WiFi, Modem
Interface option 3 4 CAN, GPS
Interface option 4 4 CAN, GPS, WiFi, Modem
Interface option 5
Device
Operating system Linux (64 bit)
Processor Atom x5-E3930
RAM memory 2 GB
Inputs 4x CAN
Performance Index 878
Data Transmission Modem, WiFi, GPS
Data logger software IPEmotion RT
Storage medium m2.SATA
Storage capacity 32/ 256 GB
Voltage supply 6 … 36 VDC
Supply voltage thresholds On ±0.3 VDC / Off ±0.3 VDC
Power consumption, typical > 5.0 W
Working temperature range -20 … 75 °C (-4 … 167 °F)
Storage temperature range -30 … 85 °C (-22 … 185 °F)
IP-Code IP 40 (ISO 20653 - 2013)
Relative humidity 5 ... 95 %
Dimensions B165 mm x H45 mm x T105 mm (5.20 in x 1.42 in x 4.25 in)
Weight 530 g (1.2 lb)
Protocols and traffic
CCP / XCP on CAN Yes
J1939 Yes
GM-LAN Yes
OBD Yes
WWH-OBD Yes
KWP on CAN Yes
UDS / ODX / PDX Yes
CAN-Traffic Yes
ETH-Traffic Yes
CAN-send Yes
Software functions
Configuration software IPEmotion RT.UI
No Message Lost (NML) Yes
Wake on CAN (WoC) Yes
On board scripting Yes
On board math & logic operations Yes
File formats for data storage ZIPRT, BLF, AVI, WAV, MDF4.0, MDF4.1, ASC, ATFX, PCAP (depending on operating system)
Wireless communication
GNSS (Global Navigation Satellite System) 10 Hz (GPS)
WiFi 2.4 GHz / 5 GHz (WiFi 802.11 a/b/g/n/ac)
Modem 4G (LTE)
IPEcloud / FTP-Server Yes
Video
USB Video Class (UVC) Yes
Accessories
Input cable 666-528, 666-502, 666-529, 666-500
Antenna 114389
