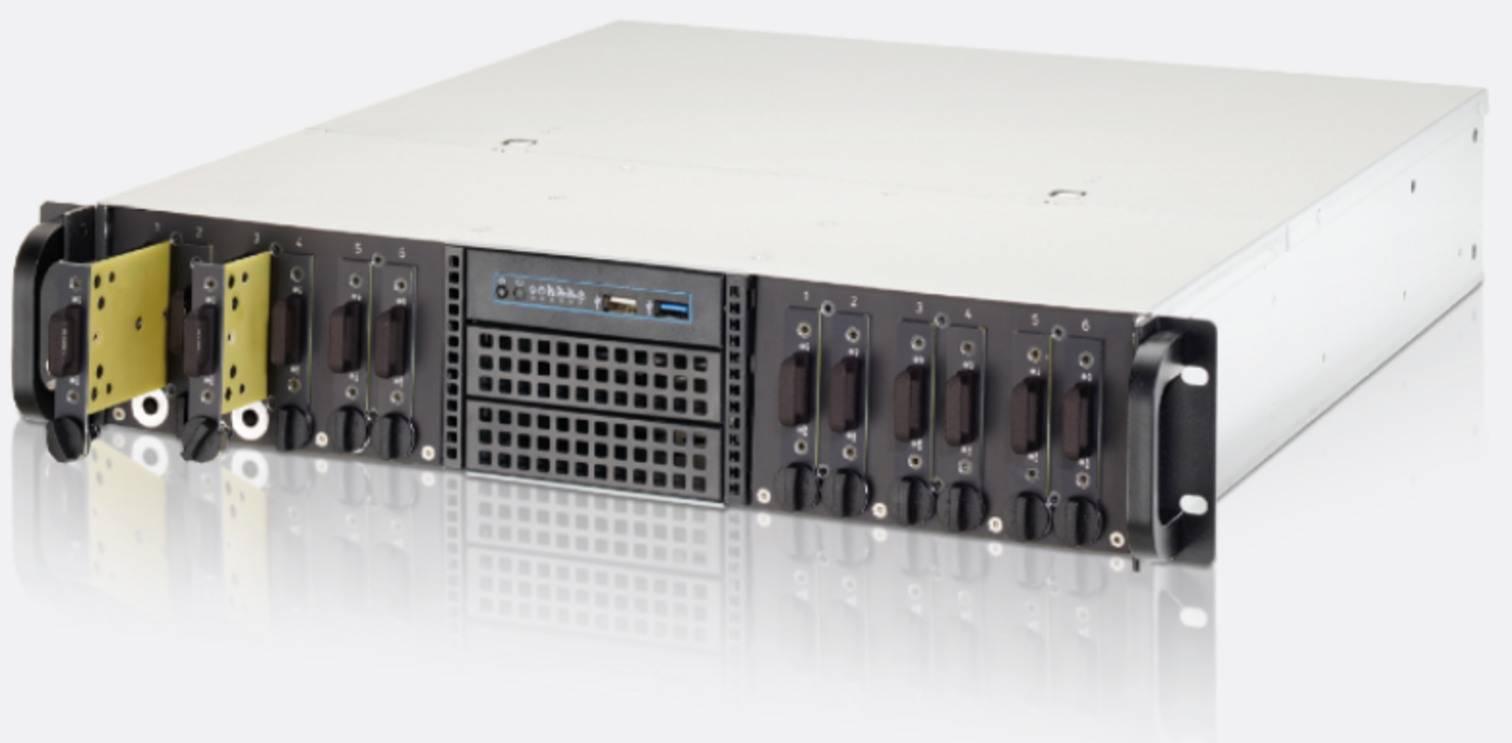

IPE DXS (Data Exchange Station)
Data exchange station for IPE DXD removable data storage
IPE DXS (Data Exchange Station)
Data exchange station for IPE DXD removable data storage- Supports up to 12 IPE DXD removable data storage
- 2 x 10 GbE (SFP+) ports
- 1 x 1 GbE (RJ45) port
- 3 x USB 3.1
- 2 x USB 2.0
- Fully automatic data discharge of the removable data storage
- Configuration via web interface
- Fast data upload to the host server via two 10 GbE interfaces
Technical data
| ETH (1 GbE) | 1 (Ethernet-interface to the PC) |
|---|---|
| SFP+ (10 GbE) | 2 (data upload) |
| USB 2.0-interfaces | 2 |
| USB 3.1-interfaces | 3 |
| Slot for removable data storage | 12 |
| Operating system | Linux (64 bit), Web interface |
| Processor | AMD EPYC 7251 |
| Memory (RAM) | 16 GB |
| Storage medium operating system,buffer | 1 x 480 GB m2.NVMe |
| storage medium | Max. 12 x IPE DXD removable data storage |
| Power supply | 100 … 240 VAC |
| Power consumption standby, typical | 14 VA |
| Power consumption idle, typical | 115 VA (depends on the number and typ of the used removable data storage) |
| Power consumption, typical | 173 VA |
| Working temperature range | 0 … 60 °C (32 … 140 °F) |
| Storage temperature range | 0 … 60 °C (32 … 140 °F) |
| IP-Code | IP 20 (ISO 20653 - 2013) |
| Relative humidity | 5 ... 95 % |
| Dimensions | W433 mm x H89 mm x D588 mm (17.04 in x 3.50 in x 23.15 in) |
| Weight | 12800 g (28.22 lb) |
| Configuration Software | Web interface |
| File formats for data storage | ZIPRT, BLF, AVI, WAV, MDF4.0, MDF4.1, ASC, ATFX, PCAP (depending on operating system) |
| IPEcloud / FTP-server / Azure-Cloud | Yes, planned end 2023: Google Cloud Storage / Amazon S3 |
| IPE DXD | removable data storage |
