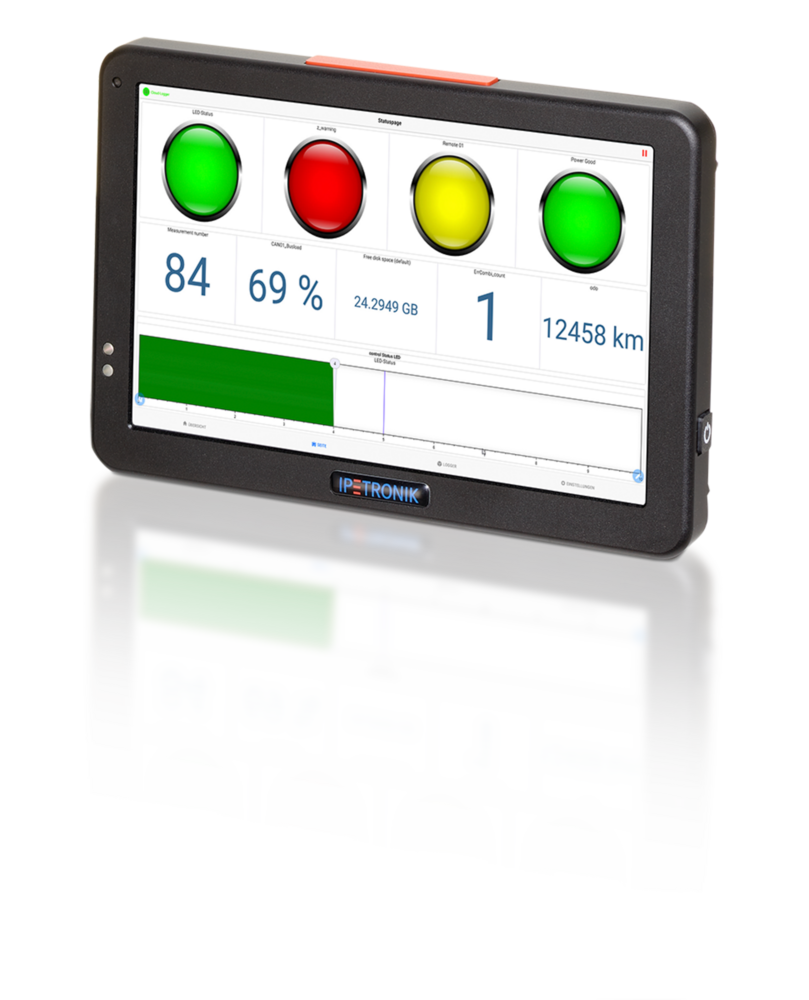

DRIVEview

Driver display system

DRIVEview

Driver display system
  • 7" touch display
  • Supported IPEmotion RT loggers: ETHOS, IPElog2, M-LOG V3
  • Display configuration via IPEmotion RT.UI or via the device
  • Supported logger software: IPEmotion RT

Enquire now Datasheet Add to notelist

Technical Data

Voltage supply 6 … 36 VDC
Working temperature range -20 … 70 °C (-4 … 158 °F)
IP-Code IP 50 (ISO 20653 - 2013)

DRIVEview – Technical data

Download as PDF

Device
Voltage supply 6 … 36 VDC
Power consumption, typical 8 W
Working temperature range -20 … 70 °C (-4 … 158 °F)
Storage temperature range -20 … 70 °C (-4 … 158 °F)
IP-Code IP 50 (ISO 20653 - 2013)
Dimensions W178 mm x H120 mm x D29 mm (7.00 in x 4.72 in x 1.14 in)
Weight 570 g (1.26 lb)
Housing material
Standby / operating current
Operating system Linux (64 bit)
Inputs
Performance Index
Data Transmission
Accessories
System cable USB2ETH-ABK3, USB2ETH-ABK1, USB2ETH-ABK2, 666-531 FEATURE / ABK cable
